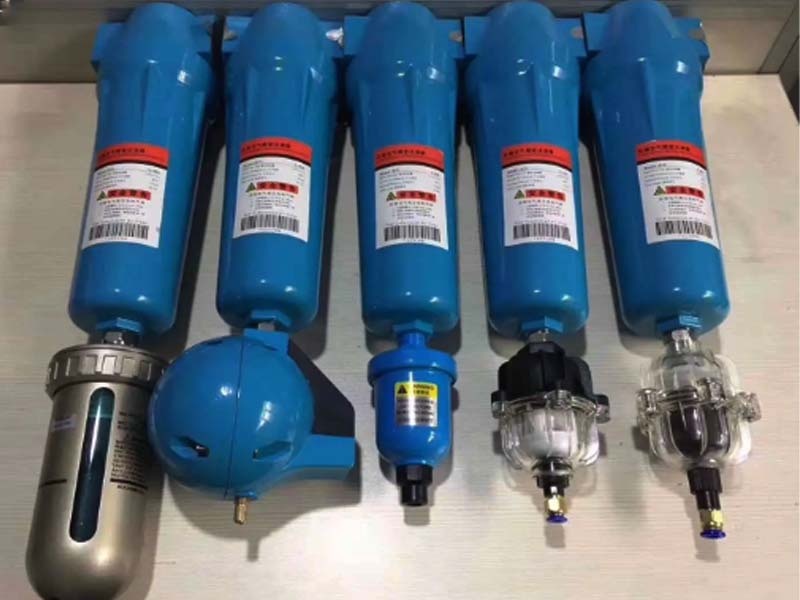

The air compressor line filter is mainly used to filter the water, oil, and dust in the compressed air, and then enter the refrigerated dryer for drying treatment without harming the equipment. The general compressed air system will be contaminated by abrasive solid particles (such as dust, dirt, rust, and scale), compressor lubricating oil (mineral or synthetic lubricating oil), and condensate droplets. If these pollutants are not removed, the maintenance cost of pneumatic equipment will rise, causing instrument and control system failures and polluting the process. The matched Sollant compressor air line filter will remove these pollutants, ensure the quality of air output, and reduce operating costs.
The main function of the compressor line filter is to improve the quality of compressed air. With the advantages of high performance, high efficiency, maintenance-free, high reliability, etc., it has always provided high-quality compressed air for all walks of life.
Services
Application
Used in laser cutting, bottle blowing, advanced spraying, food, electronics, and other industries.
Functions
Multi-layer different filtration materials are used to filter impurities in the compressed air system.
Design
In order to meet more application requirements, we have designed a series of fast combinations.

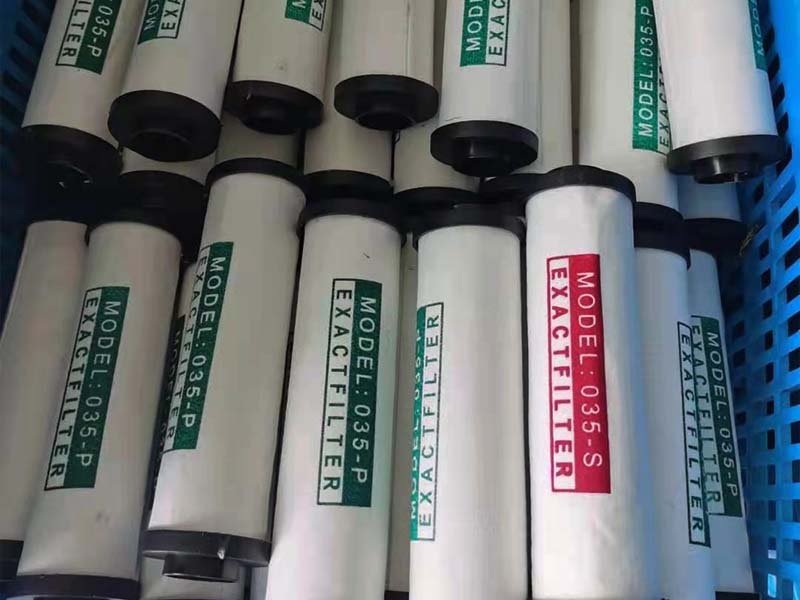

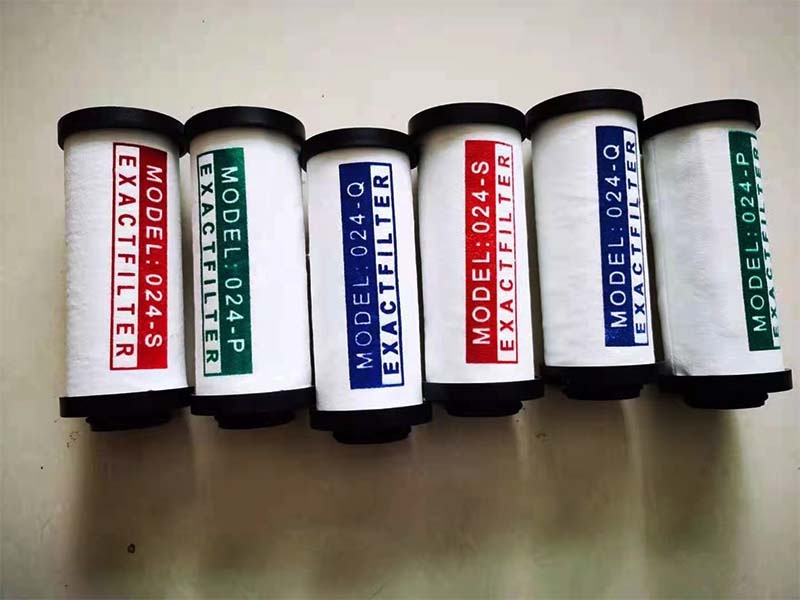

Replacement of Screw Type Air Compressor Line Filter
Low pressure(≤10 BAR, 145 PSI), replaced every 4000-5000 hours.
Medium Pressure(10-16 BAR, 145-240 PSI), replaced every 3000 hours.
High pressure(≥16 BAR, 240 PSI), replaced every 1200-2000 hours.
