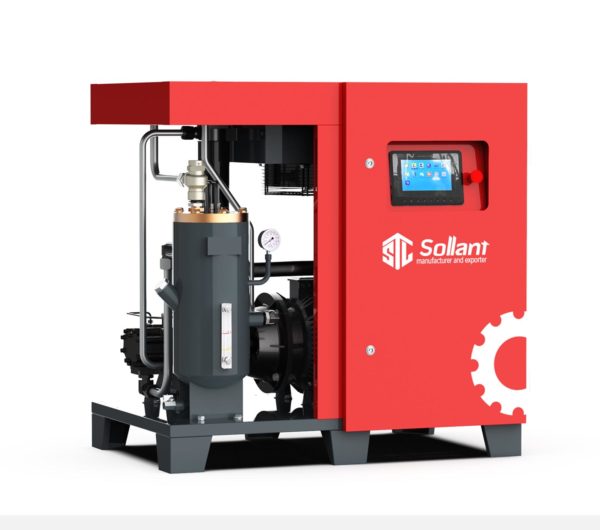

SLT-18.5V 18.5kw/25hp
Motor Power: 18.5 〈kW〉
Motor Horsepower: 25 〈hp〉
Working Pressure: 8 〈bar〉
Air Displacement: 3.0 〈M3/min〉
Lubricating Oil Volume: 18 〈L〉
Noise Level: 64±2 〈dB(A)〉
Start Method: PM VSD
Air Outlet Diameter: DN25
Driven Method: Direct Driven
Description
25 HP AIR COMPRESSOR FOR SALE
25 HP AIR
COMPRESSOR
The 25hp screw air compressor independently designed and produced by our company has a maximum operating power of 18.5kw and a conventional pressure of 8 kg, which can meet the stable air required by various industries.
FEATURES OF AIR COMPRESSOR
» The 25hp air compressor on sale is equipped with an intelligent and efficient control model-frequency converter. Adjusting the output only produces the user’s consumption and saves up to 50% of the annual operating cost.
» The sollant intelligent controller can monitor all operating conditions, including temperature, pressure, current, and other important parameters, ensuring the stable operation of the air compressor
» The air compressor maintenance parts also have inspection time to remind us when to do maintenance and replace the three filters and oil
» Reasonable structure, ideal force balance performance, small vibration of the whole machine
» The single machine has a large capacity, no gap capacity, and the specific power is 0.5 lower than that of the ordinary host of the same level. It can save up to 1.5 kWh per hour. If you calculate 8 hours a day, you can save 12 kWh a day, which greatly reduces the cost of use.
» The main motor is directly connected to the transmission, and the transmission efficiency can reach 98%-99%, which is better than ordinary belt transmission and reduces energy loss.
Additional information
| Weight | 550 kg |
|---|---|
| Dimensions | 1350 × 920 × 1230 mm |
| Air Delivery | 80-110 cfm |
| Pressure | 100-180 psig |
| Min. Order | 1 set |
| Warranty | 24 months |
| Payments | T/T、L/C、others |
| Color | red. gray or can be customized |
| Package | Wooden box packaging |
