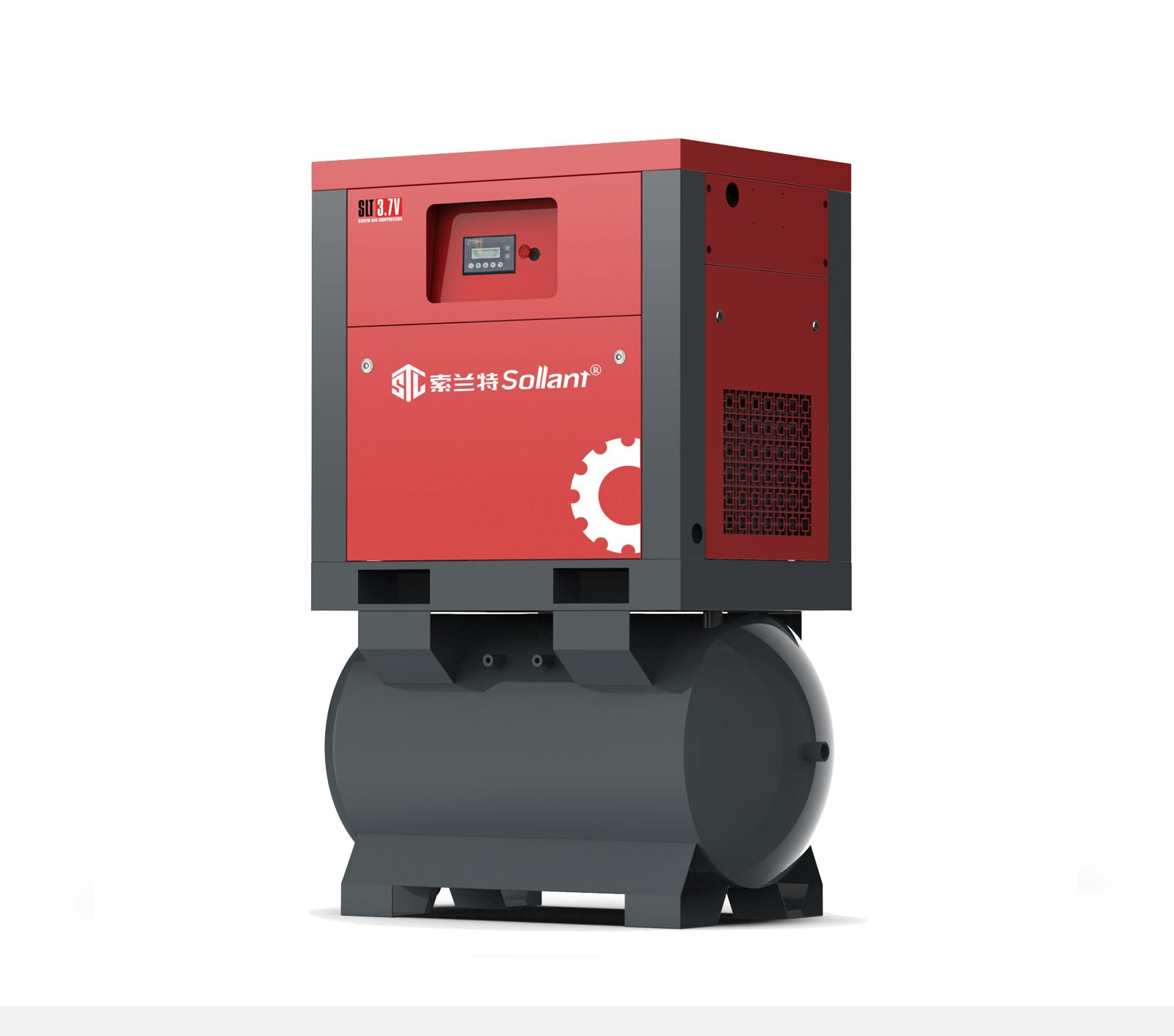

SLT-7.5VI 7.5kw10hp
Motor Power: 7.5 〈kW〉
Motor Horsepower: 10 〈hp〉
Working Pressure: 8 〈bar〉
Air Displacement: 1.1 〈M3/min〉
Lubricating Oil Volume: 10 〈L〉
Noise Level: 60±2 〈dB(A)〉
Start Method: PM VSD
Driven Method: Direct Driven
Power Source: AC POWER
Air Outlet Diameter: DN25
Description

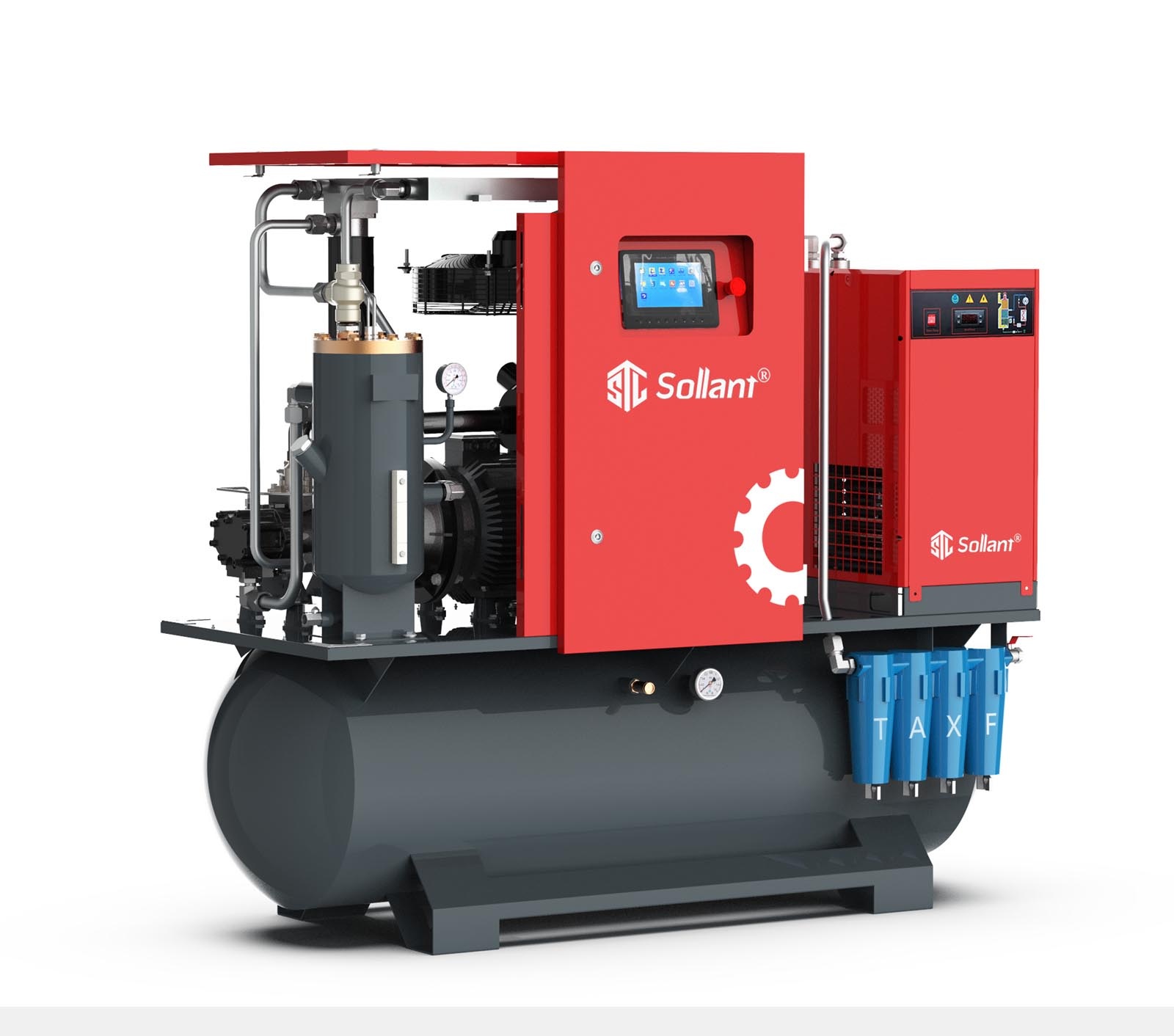

BEST 3-IN-1 AIR COMPRESSOR
THE ADVANTAGES OF 3-IN-1 AIR COMPRESSOR
- Integration of air compressor, air receiver, refrigerated dryer, and micro-filters, easy to install
- Avoid the trouble from equipping air receiver tank, air dryer, and filters for customers
- Avoid the trouble from the hassle of requiring multiple vendors to provide services
- PM VSD screw compressor ensures that the working pressure is always stable.
- Efficient refrigerated dryer and high-efficiency precision filters ensure clean compressed air with a pressure dew point as low as 2-8°C.
- After-treatment with stainless steel pipe to avoid secondary pollution
- The vibration-damping design with the flexible pipeline effectively reduces vibration and noise, and the running noise is <60±2B(A).
- Post-treatment with centralized drainage, which helps keep clean on-site.
3-IN-1 AIR COMPRESSOR MANUFACTURERS
SLT-7.5VI 3 in 1 air compressor provides the ideal range for industries requiring high performance from a compact compressed air package. These units are designed to produce maximum output with outstanding reliability for the lowest possible energy usage. the range offers capacities from 0.8m3/min to 1.2m3/min to suit a diverse range of applications. Every suit is rigorously tested to perform stringent quality standards.
Additional information
| Weight | 370 kg |
|---|---|
| Dimensions | 1600 × 700 × 1500 mm |
| Air Delivery | 30-40 cfm |
| Pressure | 100-180 psig |
| Min. Order | 1 set |
| Warranty | 24 months |
| Color | Red. gray or can be customized |
| Payments | T/T、L/C、others |
| Package | Wooden box packaging |
