SLT-30V 30kw/40hp

Motor Power:                              30       〈kW〉

Motor Horsepower:                   40       〈hp〉

Working Pressure:                     8         〈bar〉

Air Displacement:                      5.0      〈M3/min〉

Lubricating Oil Volume:            30       〈L〉

Noise Level:                                    66±2  〈dB(A)〉

Start Method:                               PM VSD

Air Outlet Diameter:                   DN40

Driven Method:                                   Direct Driven

Power Source:                               AC POWER

SKU: SLT-30V Category:

Description



40 HP COMPRESSOR


screw drive air compressor Product Parameter
Power 30 kW
Horsepower 40 hp
Air Displacement/

Working Pressure

(M³/Min./MPa)

5.3/0.7
5.0/0.8
4.5/1.0
4.0/1.2
Lubricating Oil Volume 30 L
Start Method PM VSD

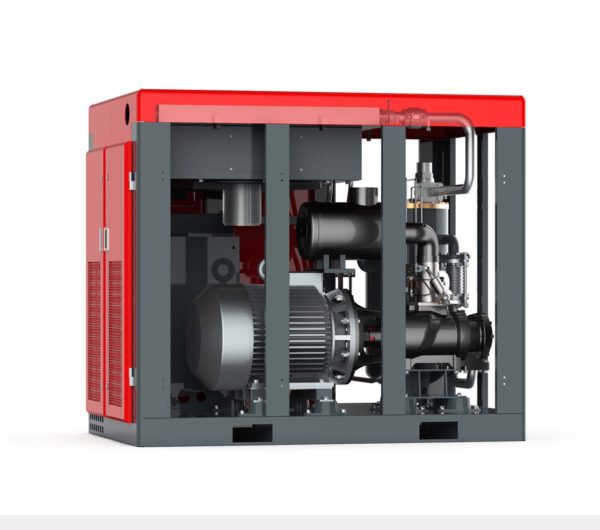

STRUCTURE AND ADVANTAGES OF 40 HP AIR COMPRESSOR


STRUCTURE:

«     Sollant adopts a brand-new design, a perfect match of high-efficiency permanent magnet motor and high-efficiency air-end. Through the inverter’s advanced speed regulation and frequency conversion technology, without increasing 40 hp air compressor price, can significantly reduce customer costs and provide stable compressed air.



ADVANTAGES:

«     According to the investigation of authoritative departments, the average loading rate of air compressors is between 60% and 70%. Industrial frequency machines have some shortcomings, such as a large amount of power was wasted during unloading, pressure fluctuations are relatively large and frequent loading and unloading, mechanical parts. However, the 40hp screw air compressor introduced by our company adopts a permanent magnet variable frequency model, which can adjust the operating speed of the air compressor according to the air consumption of the terminal, so that the power consumed by the air compressor and the air volume generated are linear Proportion to achieve the purpose of stabilizing pressure and energy saving

«     Using high-efficiency inverters, without Y-△ or other starting methods, no need to limit the number of hot and cold starts, to avoid the impact current generated during direct start, and extend the life of the equipment

«     Super-large cooler, with large design margin, 1/3 larger heat dissipation area than ordinary coolers, high heat dissipation efficiency, and lower operating costs

«     According to the self-designed sheet metal, enter the super large air volume to meet the requirements of the intake air volume. Under the rated flow, the original filtration efficiency reaches 99.5%, the filtration accuracy is close to 2ppm, and the air intake pressure loss of the high-precision air filter is less than 2500pa, which is greatly reduced. Reduce air loss and improve unit efficiency

Additional information

Weight 700 kg
Dimensions 1500 × 1020 × 1310 mm
Air Delivery

140-185 cfm

Pressure

100-180 psig

Min. Order

1 set

Warranty

24 months

Color

red. gray or can be customized

Payments

T/T、L/C、others

Package

Wooden box packaging
