SLT-3.7VI 3.7kw/5hp
Motor Power: 3.7 〈kW〉
Horsepower: 5 〈hp〉
Working Pressure: 8-12.5 〈bar〉
Air Displacement: 200-400 〈L/min〉
Air Tank: 70/90/100〈L〉
Start Method: PM VSD
Driven Method: Direct Driven
Power Source: AC POWER
Air Outlet Diameter: G1/2
Description

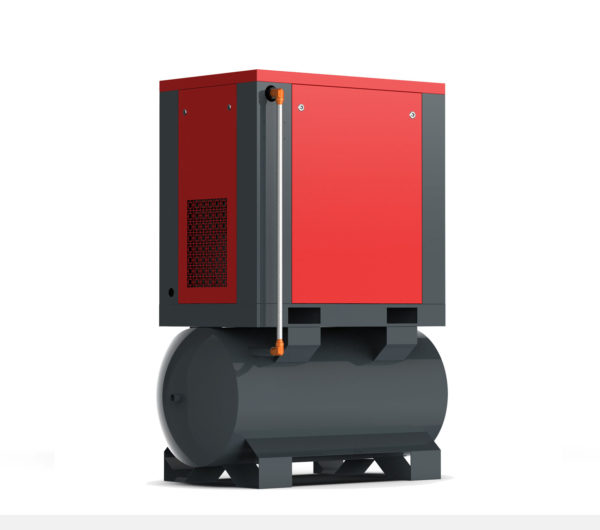

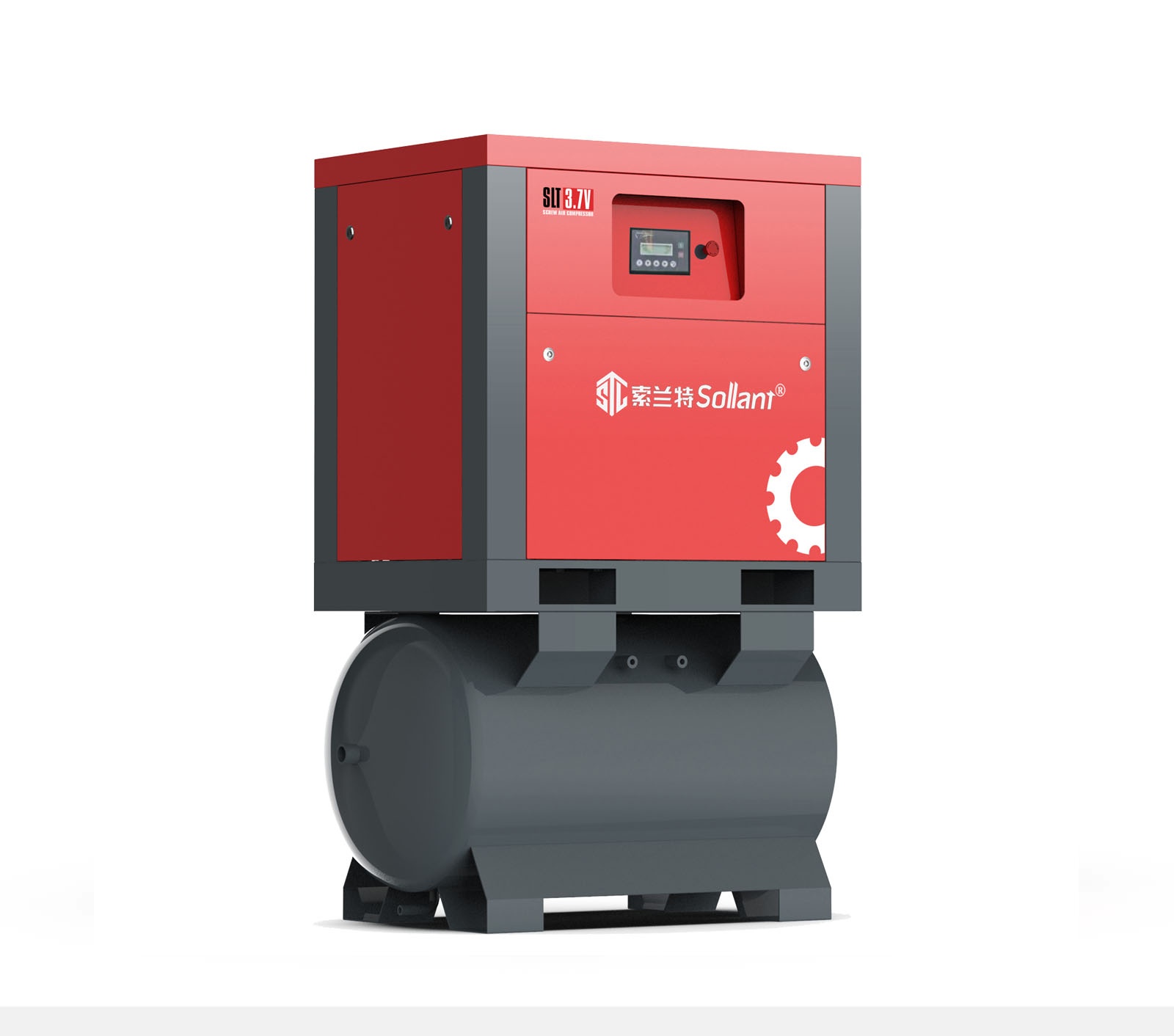

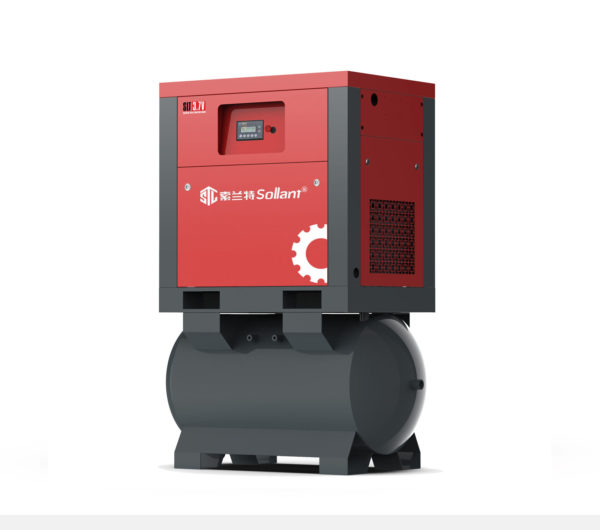

5 HP SCREW COMPRESSOR
Performance Advantage
« Constant pressure
The mini screw compressor adopts the full frequency conversion mode, and the motor speed is changed according to the pressure design of the customer’s air to achieve a constant pressure state, which reflects the real frequency conversion energy saving.
« Intelligent
The entire mini screw air compressor adopts all-digital intelligent control technology, simple operation, reliable performance, and one-key start.
« Durable and easy to operate
Normal maintenance, without any maintenance, one staff can complete all maintenance work independently
« Demulsification
The 5 hp screw compressor contains a set of accurate and reliable automatic constant temperature device to keep the lubricating oil temperature in a constant range after the air compressor is started to ensure that the exhaust temperature of the air compressor reaches the dew point temperature of the compressed air, avoiding the precipitation of condensate and preventing oil emulsification
Structural Advantage
- The integrated design greatly saves the customer’s installation cost and occupied space, and the appearance is beautiful
- The integrated pipeline design reduces the length and quantity of pipelines, reduces the probability of pipeline leakage and internal losses caused by pipelines.
Additional information
| Dimensions | 1100 × 530 × 1100 mm |
|---|---|
| Air Delivery | 7-14 cfm |
| Pressure | 120-180 psig |
| Min. Order | 1 set |
| Warranty | 24 months |
| Color | Read, Blue, Green & Black |
| Payments | T/T、L/C、others |
| Package | Wooden box packaging |
