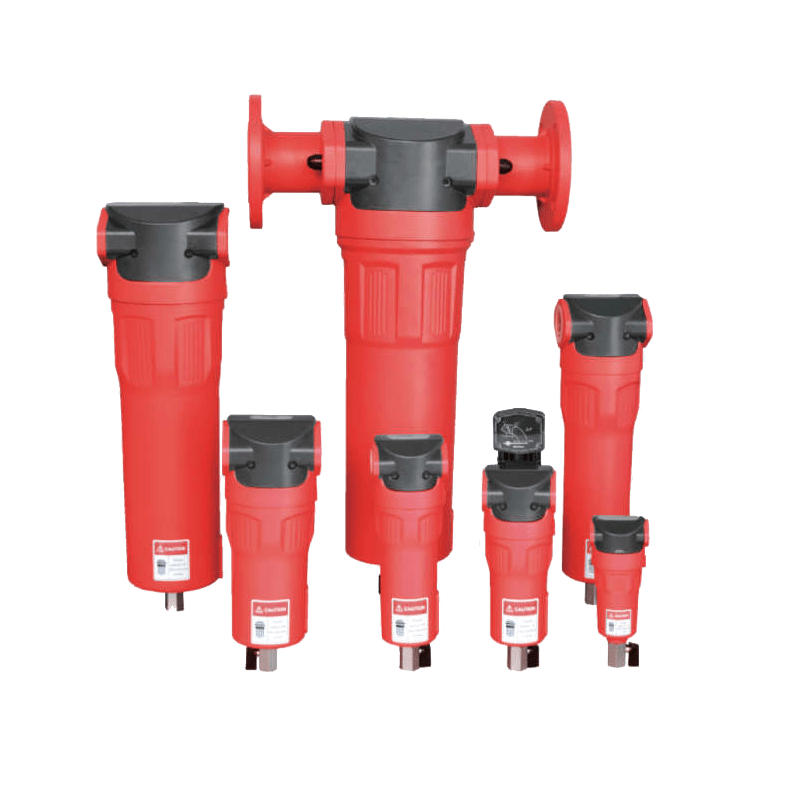

Air Compressor Inline Filter
CJ series ultra-clean precision filters provide users with high-quality compressed air filtration, and are specially used in laser cutting, bottle blowing, advanced spraying, food, electronics, petrochemical and other industries. By installing CJ series ultra-precision filters, the air of the compressor can be polluted substances (such as: oil, water, dust, etc.) are effectively removed.
Description
» Main features
- With leak detection equipment: filter leakage is the loss of energy, and it is not easy to find a lot of minor leakage; CJ series super-clean precision filters are 100% involved in strict leak detection tests, to ensure that each product has no minor leakage.

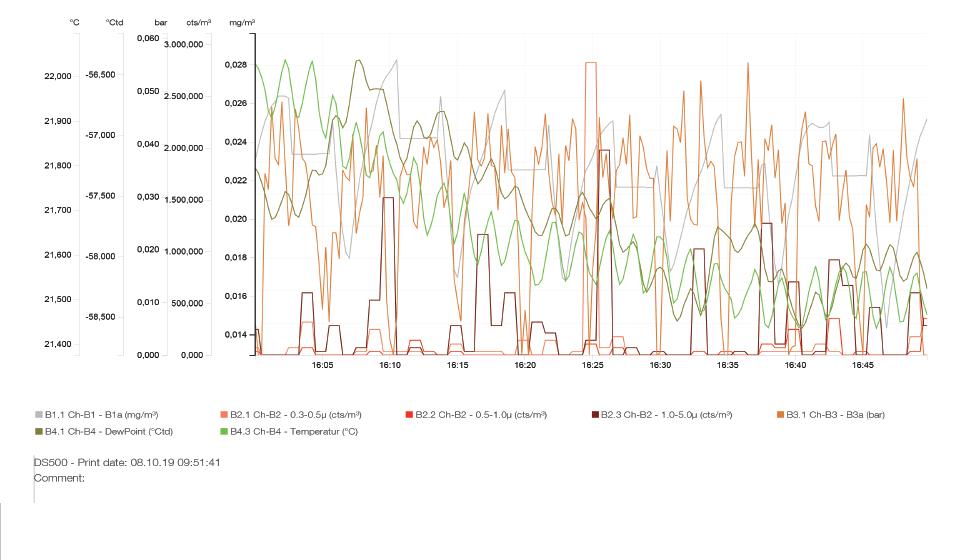

- The company has a special laboratory and has introduced advanced German testing equipment and the product testing is in line with ISO8573-1:2010 (E) international standard.
- The uniquely designed ball valve is fitted with a seal ring, simple and convenient, with no need for a sealing strip for installation.

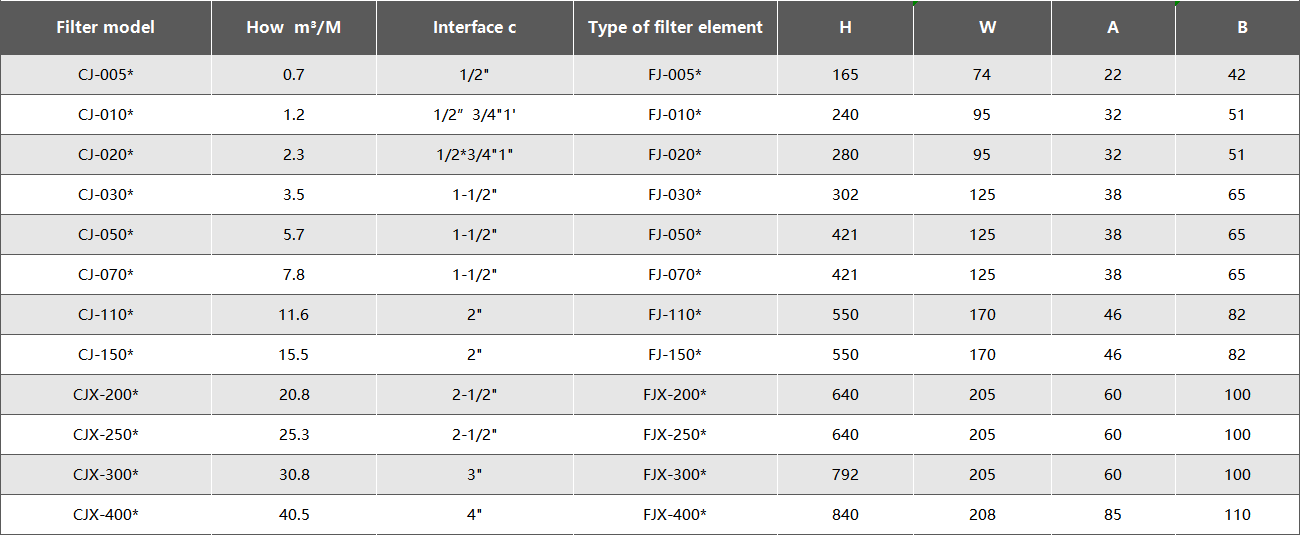

Technical Parameters

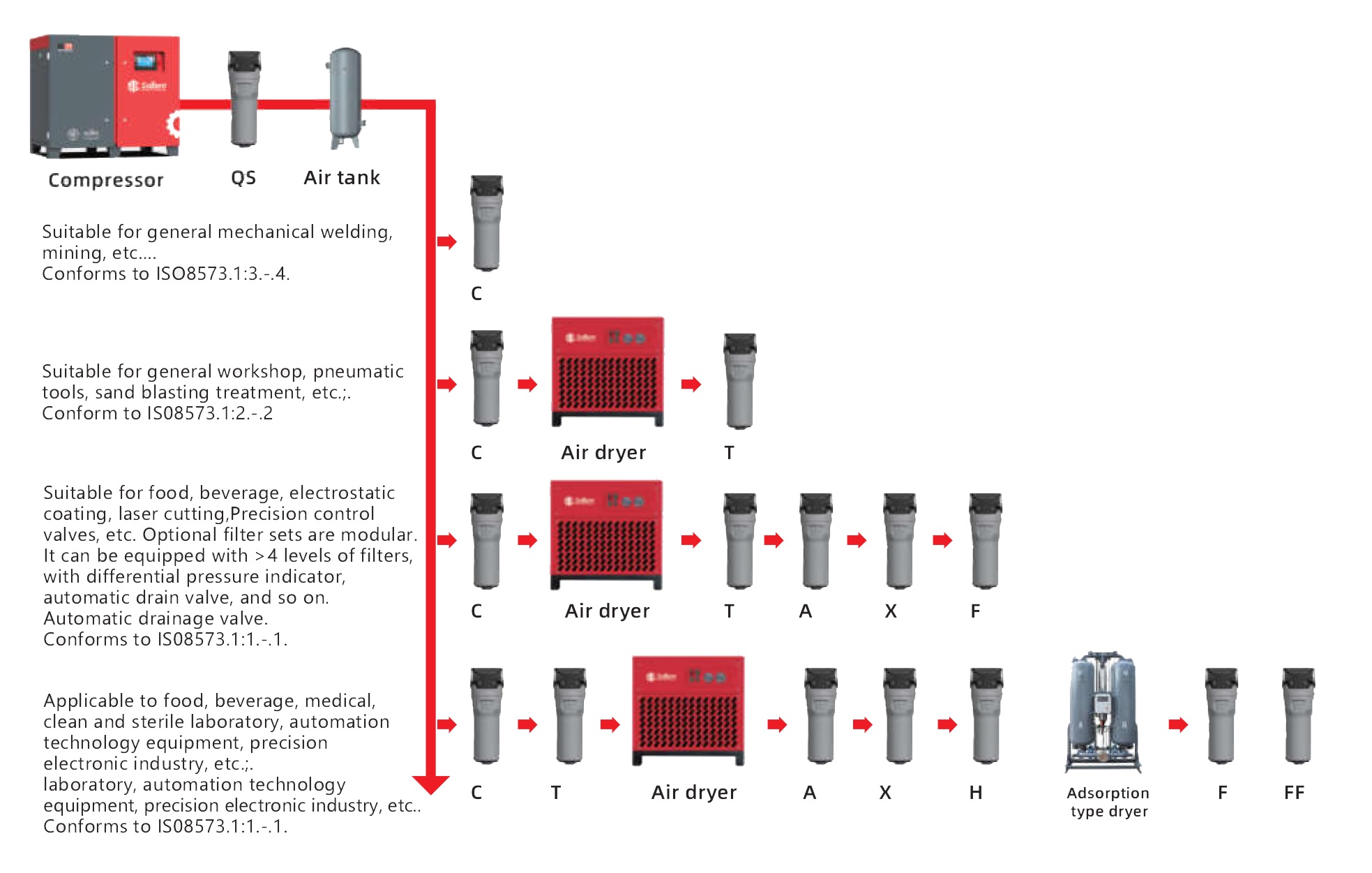

* Represents the filter level
Level C filtration accuracy: 3 microns, oil content: 3 ppm
Level T filtration accuracy: 1 micron, oil content: 1 ppm
Level A filtration accuracy: 0.01 micron, oil content: 0.01 ppm
Level X filtration accuracy: 0.01 micron, oil content: 0.003 ppm
Level H (activated carbon) filtration accuracy: 0.01 micron,
Oil content: 0.001ppm
Level F high-efficiency dust removal: filtration accuracy0.1micron
Level FF super efficient dust removal: filtration accuracy 0.01 micron
