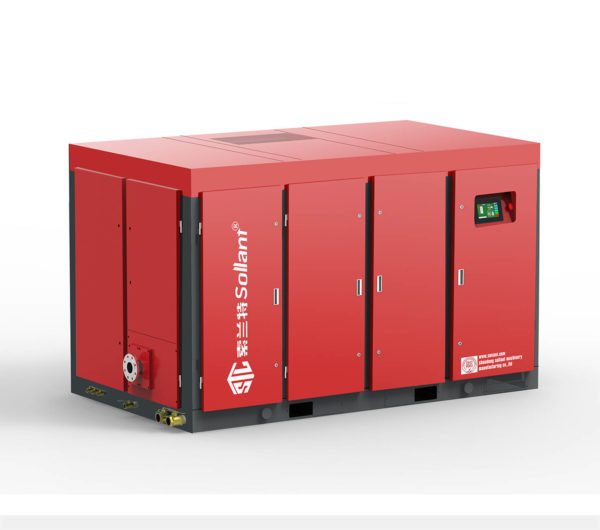

Dry Oil-Free Screw Air Compressor

Description

1.Industry-leading Original Oil-Free Air End

• The air compression chamber is completely separated from the oil chamber. The air compression chamber uses a stainless steel spring-loaded metal ring wear-free sealing system. The oil chamber has a wear-free sealing system with a copper labyrinth seal. The two do not contact ;
• The compressed air passing through the cooler after the first stage of compression has inseparable water vapor. In order to prevent the water vapor from corroding the surface of the compressor’s second-stage main machine rotor, the second-stage rotor is made of stainless steel, which is more reliable
• Filtered lubricating oil is used for cooling in the cabinet compartment of the air end. Efficient cooling, avoiding the scale caused by water cooling, thus improving the reliability of operation.

2.Smart Electronic Control System

Large-size color LCD touch screen, with a good human-machine communication interface; custom vector inhuman, perfectly matched with the motor; special program, fully monitor the parameters of the machine, automatically control the state of the machine, no need for special care; independent air duct design, suitable for each kind of working conditions.

3.Independent Air Intake System

Independent air intake to ensure that the intake air temperature is equal to the ambient temperature. A large-capacity air filter is used, which has a better filtering effect, lower intake pressure loss, energy-saving, and high efficiency. Maintenance and replacement are more convenient.

4.Noise Reduction Sheet Metal Design

The multiple noise reduction design is calculated according to the noise theory. The special flame retardant muffler cotton is attached inside to reduce the noise of the unit and provide a quieter environment for use.

5.Silent Centrifugal Fan

Silent centrifugal fan Sollant dry screw air compressor adopts the latest centrifugal fan, which has large cooling air volume, low noise, stable and uniform wind pressure, so that the cooling area of the cooler is fully utilized, and the noise of the air compressor is greatly reduced by 6-8dB(A). Give customers a quiet environment.

6.Efficient Water Cooler

Sollant dry screw air compressor water cooler uses a new type of threaded finned tube shell and tube heat exchanger. Compressed air goes inside the tube, cooling water goes to the shell side, and the tube nest is a new plum blossom copper tube, which is more convenient than water cooling. For the heater, the advantages are as follows:

• Compressed air goes through the tube and the pressure bearing capacity of the outer finned tube is improved ;
• The installation of the heat exchanger is simple and the same as that of the conventional shell and tube heat exchanger ;
• The side of the tube is made of stainless steel to prevent corrosion and rust of the cooler due to high temperature and high pressure, which affects the life of the compressor and air quality

7.Noise Reduction Venturi

The first and second air end of the air compressor all adopt the newly developed venturi muffler, and there is also an impedance integrated muffler, which can greatly eliminate the noise emitted by the compressor pipeline.

8.Reliable Hydraulic Intake Valve

A High-efficiency intake valve adopts hydraulic control, the work is more stable and reliable, avoiding the regular replacement of pneumatic components, reducing unnecessary downtime and maintenance costs.

Technical Parameters
