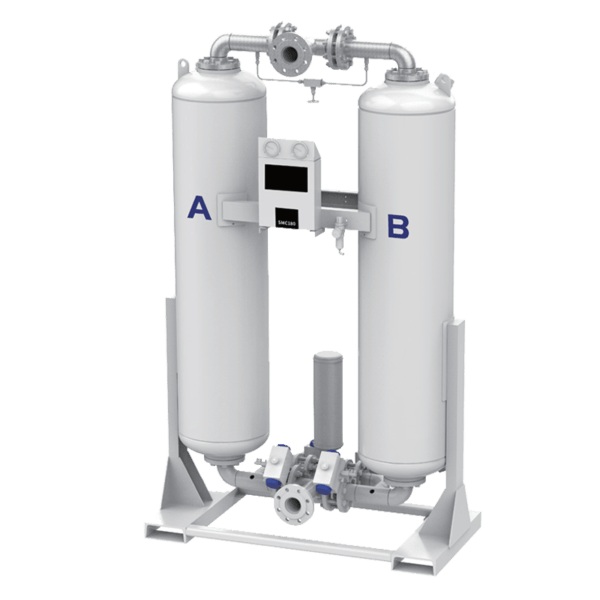

Heatless Adsorption Dryer
Regeneration gas volume: ≤14%~20%
Working pressure: 0.6~1.0Mpa
Intake oil content: ≤0.1mg/m³
Product gas pressure dew point: -20℃~-40℃
Desiccant: activated alumina
Working cycle: 10~20 minutes
Intake temperature: 0℃~45℃
Power supply: 220V/50Hz
Description
Is your compressed air clean?
The atmosphere naturally contains several impurities such as dust, various forms of carbon dioxide, hydrogen compounds and water in the form of humidity.
Once sucked into the compressor, these impurities are compressed and sent along the pipeline along with the oil particles. These contaminants interact to produce abrasive and corrosive effects that can cause wear of downstream equipment or form corrosive emulsions.
Sollant has developed a range of premium air solutions to ensure professional air quality. Increase efficiency and productivity and extend the life of equipment and tools. The quality of compressed air is of paramount importance to users. If air laden with contaminants comes into contact with the final product, the cost of rejecting the final product can be unacceptably high, and the cheapest option for producing a product can become prohibitively expensive.
Heatless Adsorption Dryer Features
» Features
- Large-sized tower body ensures air flow rate and contact time
- High-performance adsorbent with stable performance and long service life
- Large displacement muffler
- Stainless steel check valve, air diffuser
- Electrical box IP54
» Reliable design
- Supporting ceramic balls are used at the bottom of the adsorption tower to make the air distribution more uniform, which can prevent the adsorbent at the bottom from soaking in water and prolong the life of the adsorbent;
- With the specially designed stainless steel shunt, the pressure loss can be greatly reduced.
- Special customized high-performance adsorbent can achieve excellent dew point.
- The standard configuration of the whole series is a high-performance pneumatic valve, and its reliability and pressure loss during operation are much better than that of diaphragm valves and solenoid valves.
- The standard configuration is the high-efficiency oil removal and dust removal filter for air control valve control.
Technical Parameters
