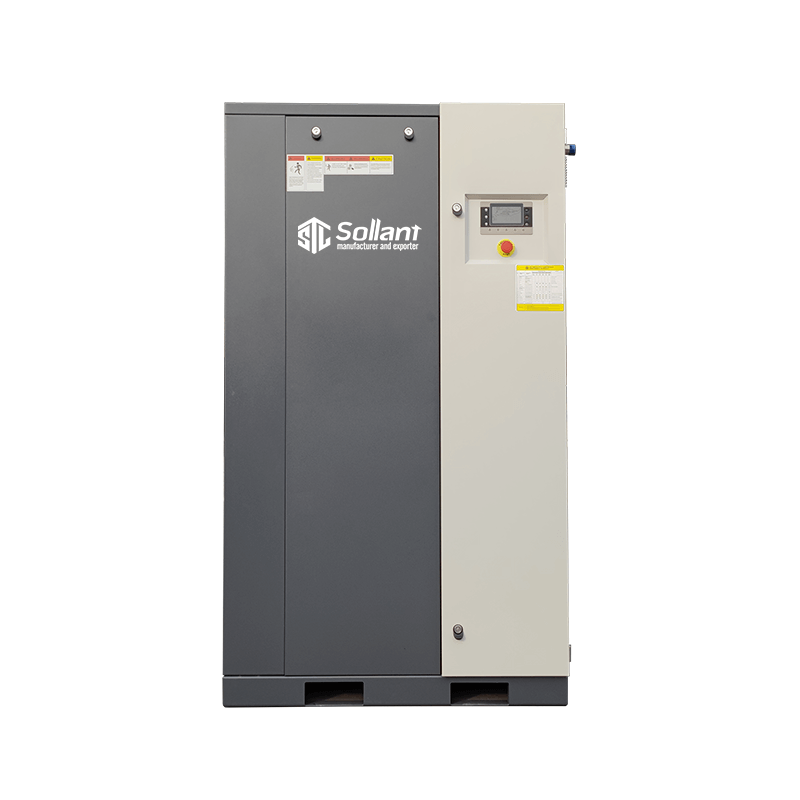

Oilless Scroll Air Compressor

Description

Advanced Scroll Compression Technology

The unique working principle of scroll compression technology endows SOLLANT compressors with unique energy efficiency advantages. The air compression process is realized through the mutual movement of the static scroll and the movable scroll. The air enters from the outer side of the machine head. Once the air is inhaled, the movable scroll closes the air inlet. As it rotates, the air is gradually compressed, and continuous compressed air is discharged from the center of the fixed scroll. This process is repeated continuously so that the discharged compressed air is always continuous without fluctuations.

Features of oil-free scroll air compressor

 »      There is no oil and carbon pollution in the air system, which is cleaner.

 »      Less moving parts. Simple structure, high reliability and long service life.

 »      No need to replace lubricating oil and its oil filter, no problem of waste liquid disposal, more environmentally friendly

 »      There is no contact between the moving and static vortex during work, so the vibration is small and the chatter is lower.

 »      The operating cost is extremely low, which can save you tens of thousands of yuan in electricity bills every year.

 »      There are almost no wearing parts, the maintenance workload is very small, and the maintenance cost is lower.

 »      Multi-machine compound intelligent control mode, adjust the compressed air consumption according to the working site conditions and start/stop control sequentially, preventing power consumption when starting without load.

 »      The optimized scroll design and ultra-precision machining ensure high efficiency.

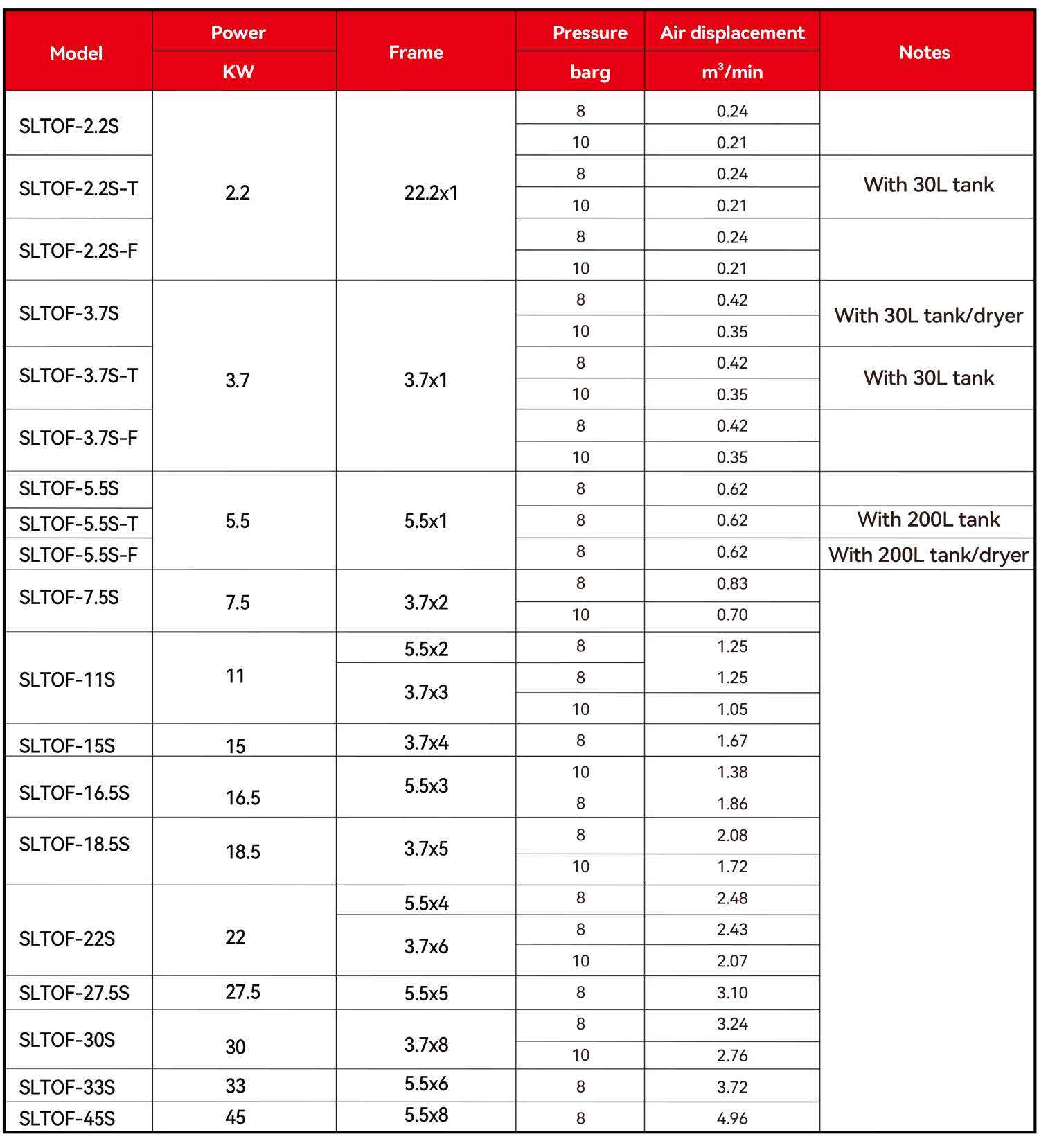

Technical Parameters

Oilless Scroll Air Compressor Video
