Portable Generator
Series 1: 20-45 <kw>
Series 2: 80-110 <kw>
Series 3: 125-250 <kw>
Series 4: 200-400 <kw>
Description
The generator is the mechanical equipment that converts other forms of energy into electrical energy. A diesel generator is a combination of a diesel engine and generator (usually AC generator) to generate electric energy.
Diesel compression ignition engines are usually designed to run on fuel, but there are some types suitable for other liquid fuels or natural gas. The diesel generator is a kind of small power generation equipment, which uses diesel as fuel and diesel engines as the prime mover to drive the generator to generate electricity.
The whole set is generally composed of diesel engines, generators, control boxes, fuel tanks, storage batteries for starting and control, protection devices, emergency cabinets, etc.
Sollant is a worldwide company specializing in the production of all kinds of generator sets from 8KVA to 4000KVA. Sollant works with Cummins, Perkins, Kubota, Doosan, MTU, Mitsubishi, Volvo, and other world-renowned diesel engine manufacturers to ensure that all of our generator sets are robust and reliable.
Parameters Table
⇒ Series1: single axle two wheels, front supporting guide wheel, height-adjustable traction head.
| Genset Cpacity(kw) | Weight(kg) | Trailler Size(L*W*H)MM | Bearing Dimension(L*W)mm |
| 20-45 | 1200 | 3260*1970*840 | 2250*1000 |
⇒ Series2: single axle two wheels, front supporting guide wheel, height-adjustable traction head.
| Genset Cpacity(kw) | Weight(kg) | Trailler Size(L*W*H)MM | Bearing Dimension(L*W)mm |
| 80 | 1740 | 3810*2070*840 | 2900*1100 |
| 100-110 | 1850 | 4062*2070*840 | 3150*1100 |
⇒ Series3: two-axle four wheels, front supporting guide wheel, height-adjustable traction head.
| Genset Cpacity(kw) | Weight(kg) | Trailler Size(L*W*H)MM | Bearing Dimension(L*W)mm |
| 120-150 | 2340 | 5100*1900*860 | 3300*1100 |
| 160-200 | 2600 | 5400*2090*860 | 3600*1200 |
| 250 | 3270 | 5400*2190*860 | 3600*1300 |
⇒ Series4: two-axle four wheels, turning table, traction mechanism.
| Genset Cpacity(kw) | Weight(kg) | Trailler Size(L*W*H)MM | Bearing Dimension(L*W)mm |
| 200-220 | 3400 | 4900*2400*880 | 3600*1400 |
| 250-280 | 4000 | 4900*2400*880 | 3600*1400 |
| 300-320 | 3400 | 4900*2400*880 | 3600*1400 |
| 360-400 | 5300 | 5100*2500*880 | 3800*1500 |

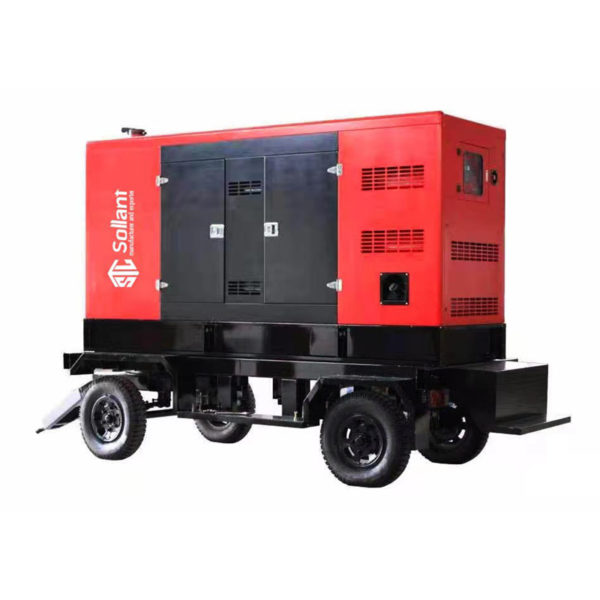

The Performance Characteristics Of Sollant Mobile Trailer Gen-Set
- Suitable for field works or mobile operations.
- We sealed canopy, rainproof and safe to use.
- Height adjustable and booster for trailer frame.
- Trailer chassis with leaf spring damping.
- The four corners of the trailer frame are equipped with adjustable support foot devices and the front guide wheels are provided also.
- The platform on both sides of the canopy is set for easy maintenance.
- The braking system is equipped with brakes such as parking hand brakes, pneumatic or hydraulic brakes.
- Standard lighting system compliances with traffic safety requirements.
- Additional manual or electric cable hinges and power cables ＆ aviation sockets can be equipped per user requirements.
