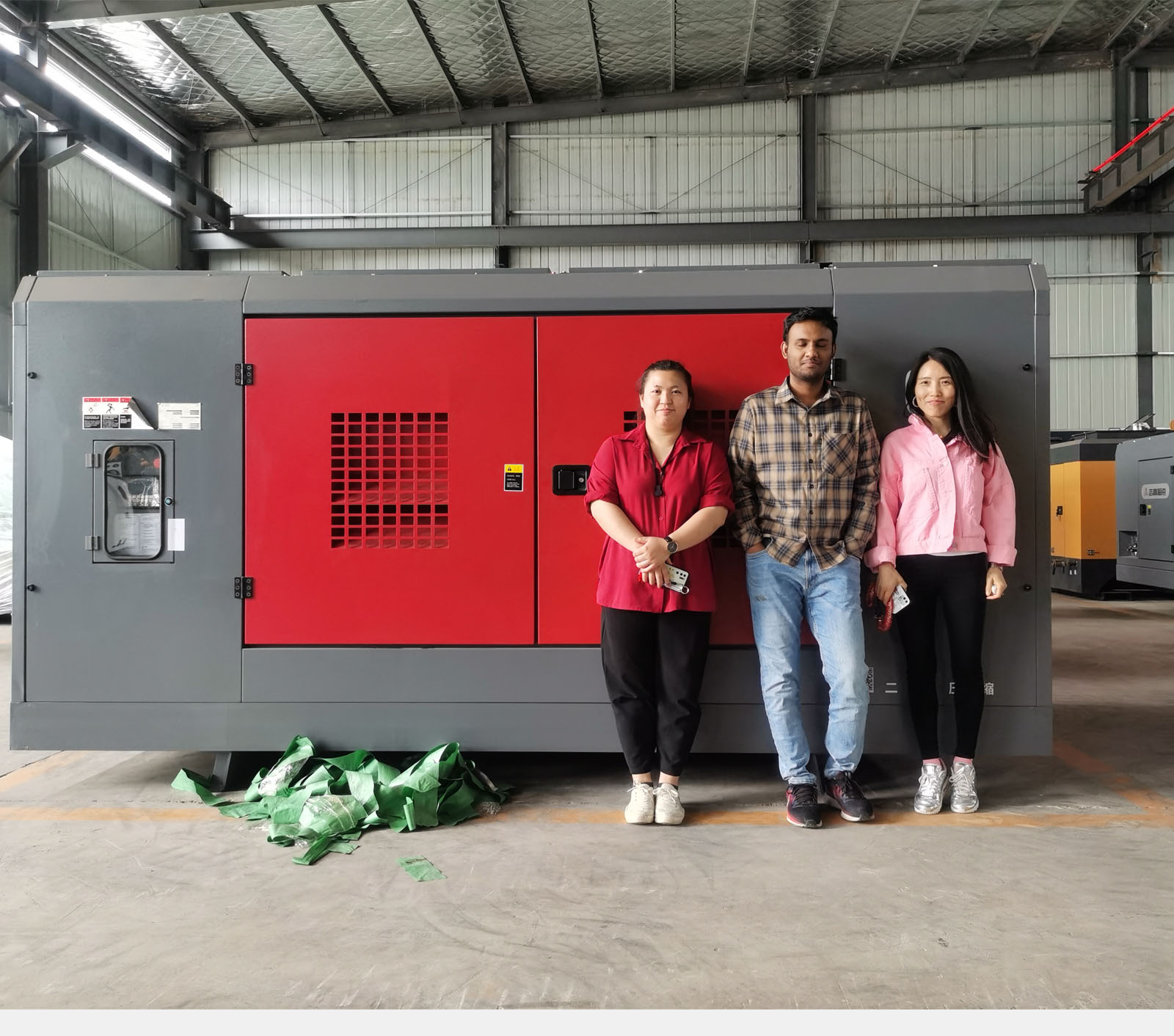

Diesel Air Compressor
Power: 295-447 〈KW〉
Speed: 1750-1900 〈RPM〉
Air Displacement: 29-37 〈M3/min〉
Working Pressure: 24-35 〈bar〉
Dis. temperature: ≦130 〈°C〉
Air Oil Content: ≦5 〈PPM〉
Displacement: 10-16 〈L〉
Driven Method: Direct Driven
Air Outlet Diameter: 1*DN20 1*DN50
Description
FEATURES OF DIESEL STATIONARY SCREW AIR COMPRESSOR
» Main engine: the main engine and the diesel engine are directly connected through a high elastic coupling with the large diameter rotor design of the third generation 5:6, and there is no increasing gear in the middle. The speed of the main engine is the same as that of the diesel engine and the transmission effect is achieved Higher rate, better reliability, longer life.
» Diesel engine: the choice of domestic and foreign famous brand diesel engines such as Cummins meets the national II emission standards with strong power and low fuel consumption.
» The air volume control system is simple and reliable, according to the size of the air consumption, the air intake of 0~100% automatic adjustment, at the same time, automatic adjustment of the diesel engine throttle, maximum diesel saving.
» Microcomputer intelligent monitoring air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, oil tank level, and other operating parameters, with automatic alarm and shutdown protection function.
» Multi-stage air filter, suitable for dust environment; Multistage fuel filter, suitable for domestic oil quality status; Super large oil-water cooler, suitable for high temperature, especially high altitude, and another harsh environment.
» Humanized design, need to maintain the parts within the range of maintenance, maintenance of air filter, oil filter, fuel tank, battery and oil cooler, easy and convenient, reduce the downtime.
Model | SDF1025K | SDF1100K | SDF1025K | SDF1025K | SDF1025K | |
Air displacement/(M³/Min./MPa) | 29 | 33 | 33 | 35 | 37 | |
Working pressure(MPa) | 2.4 | 2.5 | 3.5 | 3 | 2.4 | |
Air outlet diameter | 1*DN20 1*DN50 | 1*DN20 1*DN50 | 1*DN20 1*DN50 | 1*DN20 1*DN50 | 1*DN20 1*DN50 | |
Dis.temperature(°C) | ≦130 | ≦130 | ≦130 | ≦130 | ≦130 | |
Air oil content(PPM) | ≦5 | ≦5 | ≦5 | ≦5 | ≦5 | |
Driven method | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | |
Diesel engineer perameter | power(KW) | 295 | 353 | 447 | ||
speed(RPM) | 1900 | 1750 | 1900 | |||
displacement(L) | 10 | 12 | 15/16 | |||
Extenal dimensions | Length (mm) | 3400 | 3400 | 4000 | ||
Width (mm) | 1950 | 1950 | 1950 | |||
Height (mm) | 1830 | 1830 | 2100 | |||
Weight (kg) | 4700 | 5000 | 7000 |
